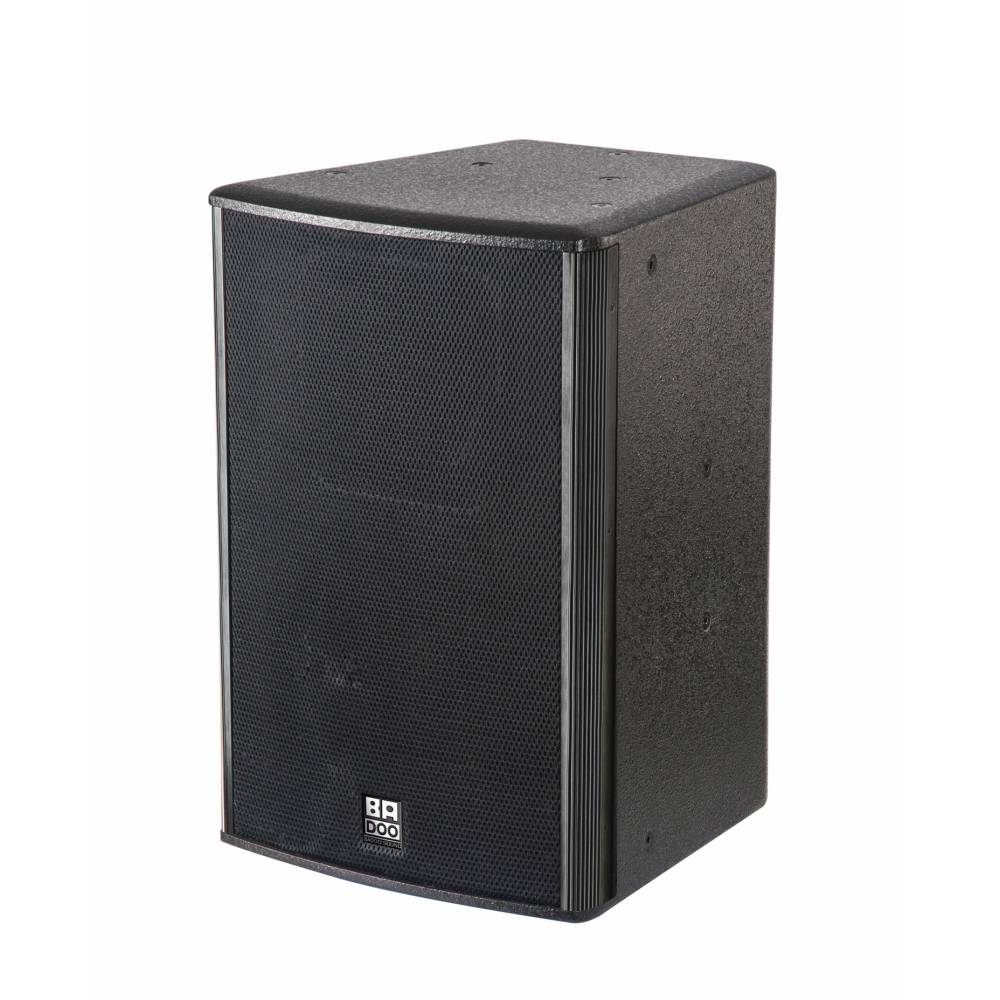

EN Series Speaker for Entertainment

EN-8

8inch woofer 1.4inch tweeter
Power 200W RMS
lmpedance 8Ω
Sensitivity 94dB/1W/1m
Product description: Badoosound club speaker
INQUIRY

In order to solve the acoustic problem for the use of loudspeaker indoor, the acoustics engineer of badoosound changed his years concept on professional speaker. Based on experience and innovation, the engineer developed successfully for the EN series loudspeaker with multi-function. It is an almighty and balanced speaker system which offers service for environment with multiple space.

EN series full range loudspeaker is with small volume and high power. It utilizes Mylar diaphragm high-frequency driver with special airflow colding method to extend the top of high frequency, and reduce the distortion to be lowest. It uses on-symmestric horn with coverage 50°-100°x 55°in to control the sound under the range of requirement, reduces greatly the sound interference and improves well the sound balance of front and back of the speaker, so to raise obviously the clarity of sound, to ensure consistent tone and flat frequency response.

Utilizes latest techniques of waterproof and dustproof for the cabinet, with solid construction design, to make sure that it can work stably under bad environment. The horn could be rotated in 90. The cabinet could be hoisted and installed in different direction, so it is very easy for installation.And there is also stand hole on the top of cabinet. Therefore, it is suitable for sound reinforcement for multi-functional hall or KTV room.

Specification

Model	EN-8
Type	8" two way PA speaker
Drivers	LF:8"speaker, 160mm magnet, 2" silvering aluminum voice coil
	HF:1x1.4" Mylar diaphram driver , protector for over circuit/voltage
Frequency Range	70Hz-20KHz
Power handling capacity	200 Watts RMS
Sensitivity	94dB/1W/1m
Rated lmpedance	8Ω
SPL	116 dB continnue, 122 dB peak
Coverage(H x V)	50–100 x 55 degree
Construction	15mm Fiber board box; black paint, water/dust proof , complex asymmetric horn
Dimensions	420mm x 250mm x 261mm
Net Weight	12Kg
