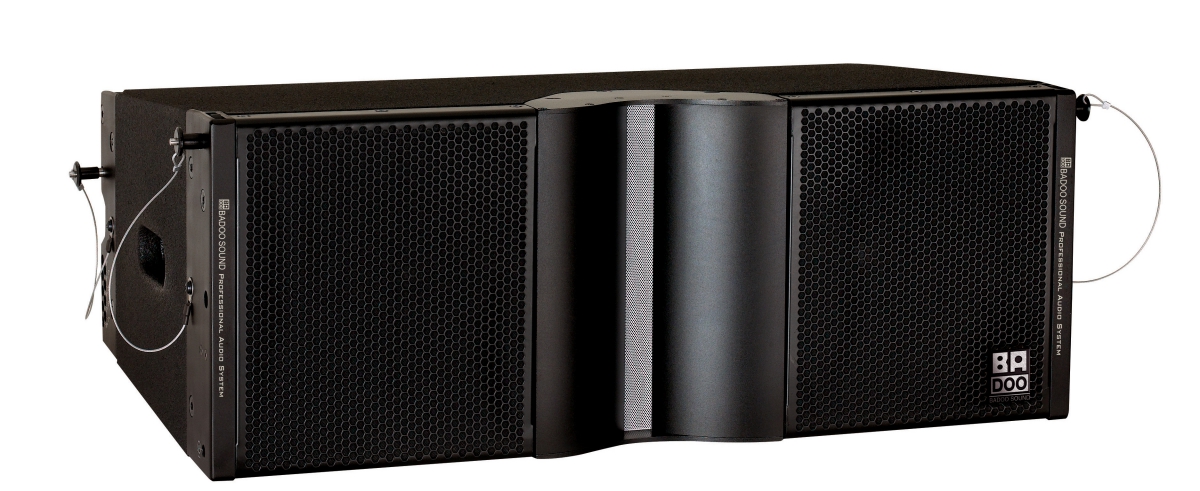

LS Series Line Array Speaker

LS-208

dual 8inch line array speakers
2x8inch woofer
3inch tweeter
Power 550watts RMS
Product description: LS-208 is a dual 8inch 2way line array speaker with big power and wide frequency response, designed for live show, or installation in church, banqueting hall, stadium or meeting hall.
INQUIRY

Badoo Sound LS-208 is a dual 8inch 2way line array speaker with big power and wide frequency response. It performs well under big dynamic, is designed for live show, or installation in church, banqueting hall, stadium or meeting hall. It is with smart size, tight construction. The cabinet is made of birch plywood with freindly environmental painting. With smart flyware, it is convenient for installation.

LS-208 uses two 8inch woofer speakers(63mm voice coil), and a 3 inch neodynium tweeter (75mm voice coil) with high sensitivity and high SPL. It uses accurate horn to control well the coverage of sound, to transfer spheroidal wave to plane wave, so to reduce abviously interferometer effect of High-Freq, to get much more clear sound in long distance.

There is no x-over network in LS-208. We offer accurate data for you to set in digital processor. It will be perfect if matching with badoosound DPS series digital processor.

Specification

Model	LS-208
Type	2x 8" two way line array speaker
Drivers	LF: 2 x 8" speaker, 2.5" voice coil
	HF: 1x3"compress driver neodymium; 3" voice coil
Frequency Range	80Hz-19KHz(-3dB)
Power handling capacity	HF:150W RMS, 600W Peak
	LF: 400W RMS, 1600W Peak
Sensitivity	HF: 112dB/1W/1m
	LF: 98dB/1W/1m
MaximumSPL	HF:134dB Continue, 140dB Peak
	LF: 124dB Continue, 130dB Peak
Rated lmpedance	HF: 16Ω
	LF: 8Ω
Coverage(H x V)	100 x 8 degree
Construction	18mm birch plywood box
	Aluminum alloy hoisting; black plastic painting
	water/dust proof treating;
Connectors	Neutrik NL4, LF: 1+ 1- HF: 2+ 2-

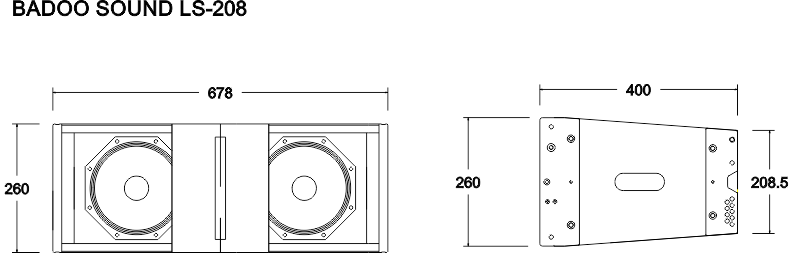

Dimensions	678 x 260 x 400mm
Net Weight	26.5Kg
