V Series Line Array Speakers

V312

BadooSound V312
dual 12inch 3 way line array speakers

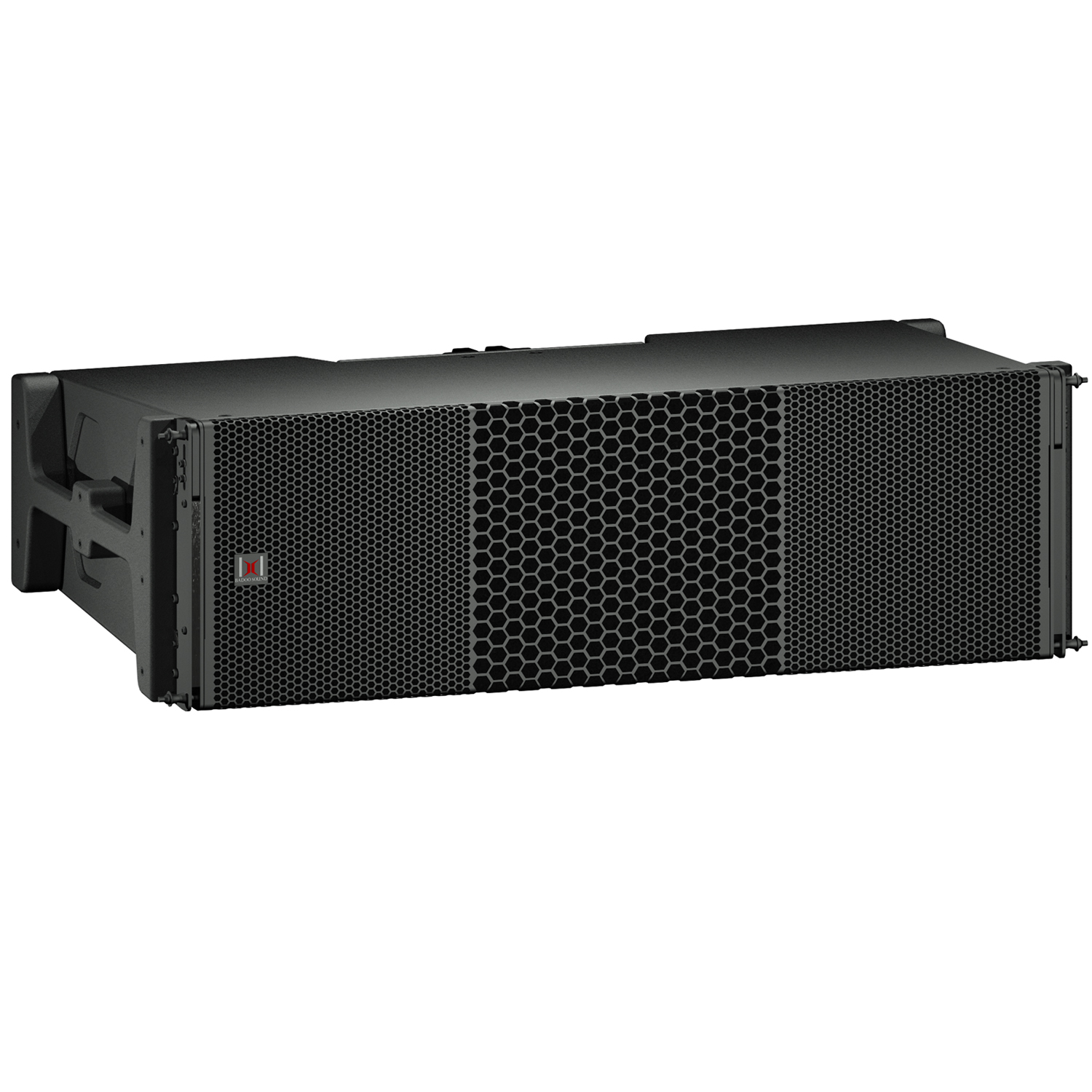

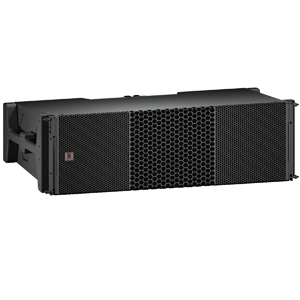

Product description: BadooSound V312 dual 12inch 3 way line array speakers
INQUIRY

Product description

The badoosound V312 is a 3-way design housing 2 x 12" LF drivers, one hornloaded 10" MF driver and two 1.4" exit HF compression drivers with 3" voicecoils mounted to a dedicated waveshaping device. The mechanical and acoustical design enables flown vertical columns of up to 24 loudspeakers to be suspended using vertical splay angles between them of 0° to 7° with a 1° resolution. The cylindrical wave segments produced couple coherently in the vertical plane. Due to the dipolar arrangement of the neodymium LF drivers the exceptional 80° horizontal constant directivity dispersion control is nominally maintained down to 250 Hz. The V312 is acoustically and mechanically compatible with the V312 loudspeaker. It can be used in columns of purely V312 loudspeakers or combined with V312SUBs. The V312 cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill, the side and rear panels incorporate four handles, and two NLT4F/M or NL8 connectors wired in parallel are also mounted at the rear.

Specifications

Model	V312
Type	dual 12" 3- way line array speaker
Drivers	LF: 2x12" neodymium speaker, 3.5" voice coil
	MF: 4 x 6.5" neodymium midrange speaker, 1.5" voice coil
	VT midrange phase adjustion, Oblique structure
	HF: 2x 3" compress driver neodymium; 3" voice coil
Frequency Range	40Hz-19KHz(-3dB)
Power handling capacity	HF: 240W RMS, 960W Peak
	MF: 600W RMS, 2400W Peak
	LF: 1200W RMS, 4800W Peak
Sensitivity	HF: 111dB/1W/1m
	MF: 107dB/1W/1m
	LF: 106dB/1W/1m
MaximumSPL	HF:133dB Continue, 139dB Peak
	MF:132dB Continue, 138dB Peak
	LF: 131dB Continue, 137dB Peak
Rated Impedance	HF: 16Ω
	MF: 8Ω
	LF: 8Ω
Coverage(H x V)	100 x 8 degree
Construction	18mm birch plywood box
	Aluminum alloy hoisting; black plastic painting
	water/dust proof treating;
Connectors	SUB:1+ 2- LF:3+ 4- MF:5+ 6- HF:7+ 8-
Dimensions	1090 x 364 x 570mm
Net Weight	60Kg
